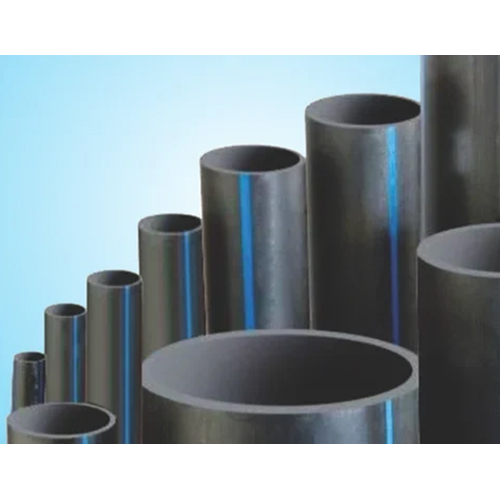

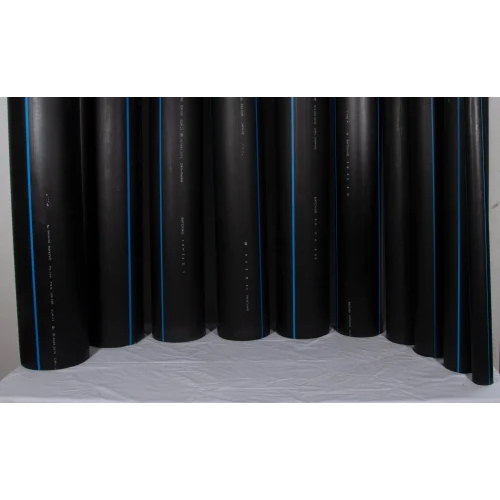

HDPE Round Pipe
32.00 - 1150.00 INR/Roll
Product Details:
- Life Span 10 YEARS
- Application Industrial
- Feature Good Quality
- Pressure 4KG TO 12KG kgf/cm2
- Product Type HDPE PIPE
- Material HDPE
- Shape Round
- Click to View more
X
HDPE Round Pipe Price And Quantity
- 32.00 - 1150.00 INR/Roll
- 1 Roll
HDPE Round Pipe Product Specifications
- Good Quality
- 61TO 300 Meter (m)
- 4KG TO 12KG kgf/cm2
- Yes
- 1" TO 6" Inch (in)
- Flange
- 10 YEARS
- HDPE
- Round
- HDPE PIPE
- Industrial
- BLACK
HDPE Round Pipe Trade Information
- 5000 Roll Per Month
- 10 Days
- All India
Product Description
APPLICATION OF HDPE PIPE
- Drinking water supply.
- Agriculture irrigation through submersible bore well pumps, Household and commerical water supply through cetrifugal pumps.
- Industrial water , affluent and chemical transportation supply system
- Fire fighting water supply.
- Lift and gravity irrigation supply system.
- Gas and compressed air distribution system.
Weight per meter in Grams
| Material Grade PE 63 | OD Pipe/Bareli Nipple Fiting | |||||||
|---|---|---|---|---|---|---|---|---|
| Inch | mm | SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| 2KG | 2.5KG | 3.2KG | 4KG | 5KG | 6KG | 8KG | ||
| 1/2" | 20 | - |
- | - | - | - | - | 120 |
| 3/4" | 25 | - | - | - | - | - | 150 | 170 |
| 1" | 32 | - | - | - | - | 190 | 230 | 280 |
| 1"1/4" | 40 | - | - | - | 240 | 300 | 370 | 440 |
| 1"1/4" | 50 | - | - | 320 | 370 | 460 | 560 | 680 |
| 2" | 63 | - | - | 500 | 590 | 720 | 890 | 1070 |
| 2" 1/2" | 75 | 460 | 550 | 690 | 840 | 1040 | 1260 | 1520 |
| 3" | 90 | 630 | 800 | 990 | 1120 | 1450 | 1810 | 2160 |
| 4" | 110 | 950 | 1180 | 1470 | 1810 | 2180 | 2660 | 3210 |
| Material Grade PE 80 | OD Pipe/Bareli Nipple Fiting | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2.5KG | 3.2KG | 4KG | 5KG | 6KG | 8KG | 10KG | 12.5KG | 16KG | ||
| Inch | mm | SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7.4 |
| - | 20 | - |
- | - | - | - | - | - | 85 | 100 |
| 1/2" | 16 | - |
- | - | - | - | - | 120 | 140 | 160 |
| 3/4" | 25 | - | - | - | - | - | 150 | 170 | 210 | 240 |
| 1" | 32 | - | - | - | - | 190 | 230 | 280 | 340 | 390 |
| 1"1/4" | 40 | - | - | - | 240 | 300 | 370 | 440 | 520 | 600 |
| 1"1/2" | 50 | - | - | 320 | 370 | 460 | 560 | 680 | 810 | 950 |
| 2" | 63 | - | - | 500 | 590 | 720 | 890 | 1070 | 1260 | 1510 |
| 2"1/2" | 75 | 460 | 550 | 690 | 840 | 1040 | 1260 | 1520 | 1800 | 2120 |
| 3" | 90 | 630 | 800 | 990 | 1120 | 1450 | 1810 | 2160 | 2570 | 3040 |
| 4" | 110 | 950 | 1180 | 1470 | 1810 | 2180 | 2660 | 3210 | 3850 | 4530 |
| Material Grade PE 100 | OD Pipe/Bareli Nipple Fiting | ||||||
|---|---|---|---|---|---|---|---|
| 3KG | 4KG | 5KG | 6KG | 8KG | 10KG | ||
| Inch | mm | SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 |
| 1" | 32 | - | - | - | - | 190 | 230 |
| 1"1/4" | 40 | - | - | - | 240 | 300 | 370 |
| 1"1/2" | 50 | - | - | 320 | 370 | 460 | 560 |
| 2" | 63 | - | - | 500 | 590 | 720 | 890 |
| 2"1/2" | 75 | 460 | 550 | 690 | 840 | 1040 | 1260 |
| 3" | 90 | 630 | 800 | 990 | 1120 | 1450 | 1810 |
| 4" | 110 | 950 | 1180 | 1470 | 1810 | 2180 | 2660 |
| 4"1/2" | 125 | 1230 | 1500 | 1870 | 2310 | 2800 | 3430 |
| 5" | 140 | 1570 | 1890 | 2350 | 2890 | 3520 | 4290 |
| 6" | 160 | 1980 | 2470 | 3080 | 3790 | 4620 | 5620 |
| 7" | 180 | 2500 | 3120 | 3910 | 4760 | 5790 | 7110 |
| I.D Pipe/Hose Nipple Fitting | |||
|---|---|---|---|
| Inch | mm | PN4 | PN6 |
| 2" | 50 | 490 | 590 |
| 2" 1/2" | 63 | 690 | 820 |
| 3" | 75 | 1060 | 1260 |
There can be a variation of up to 500gms in the weight of pipe rolls
